Push Feeder

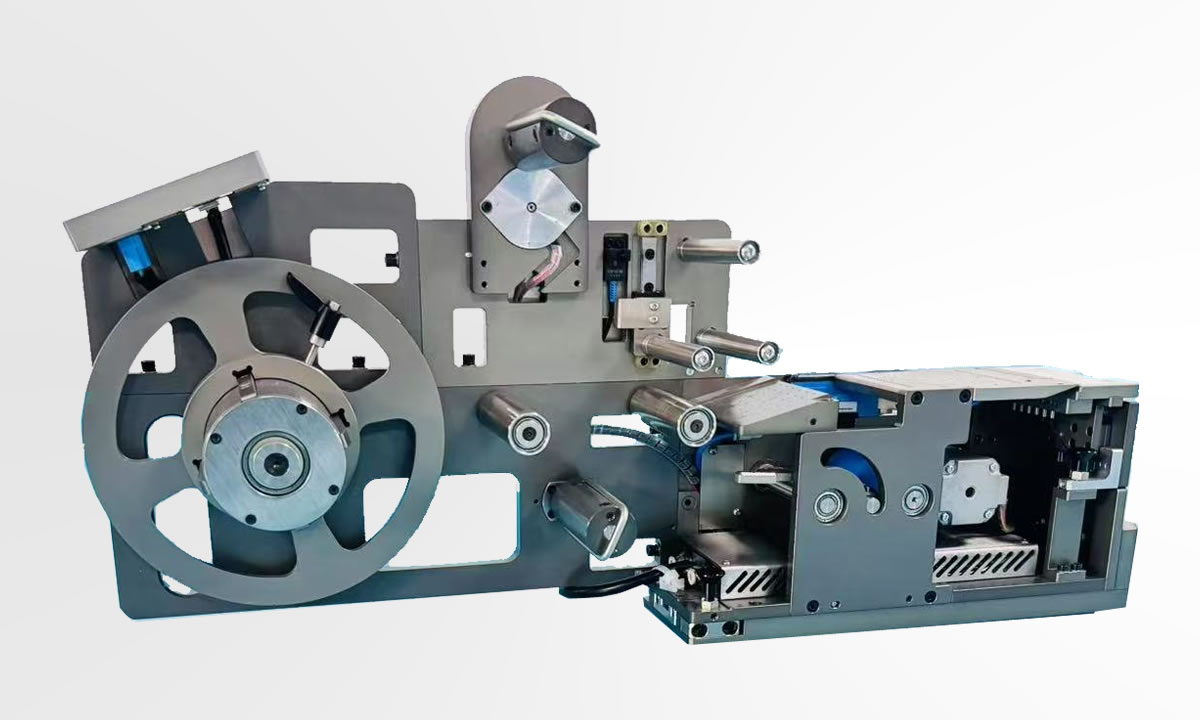

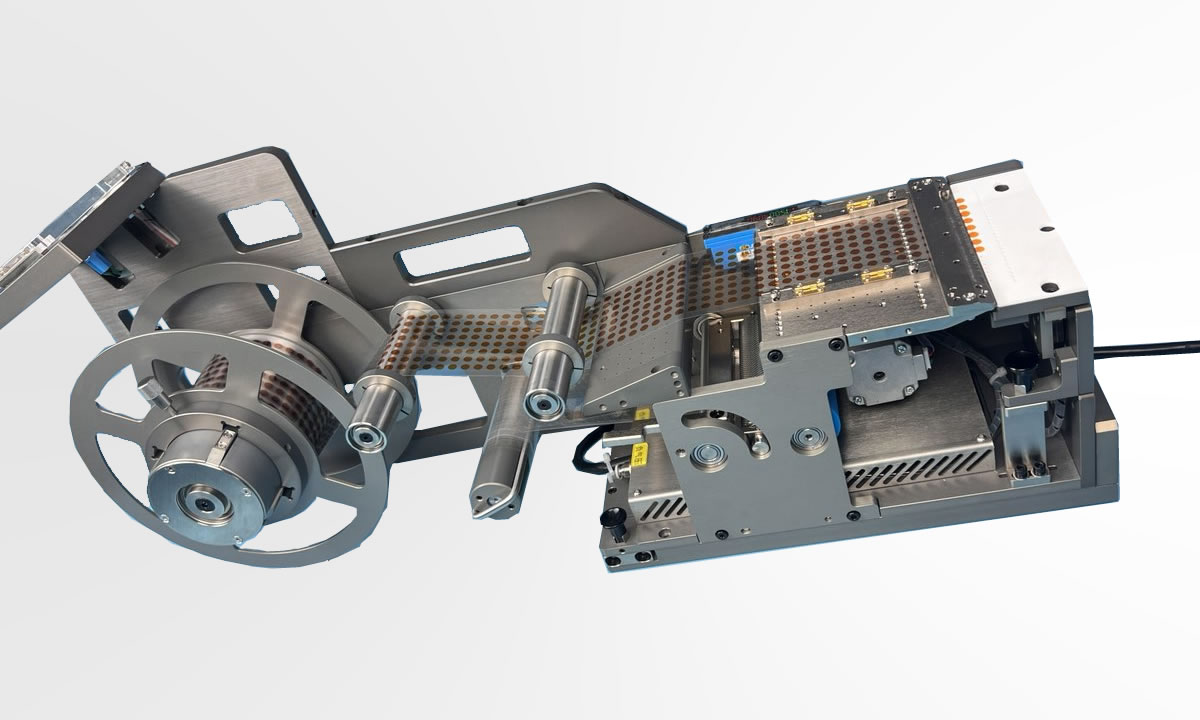

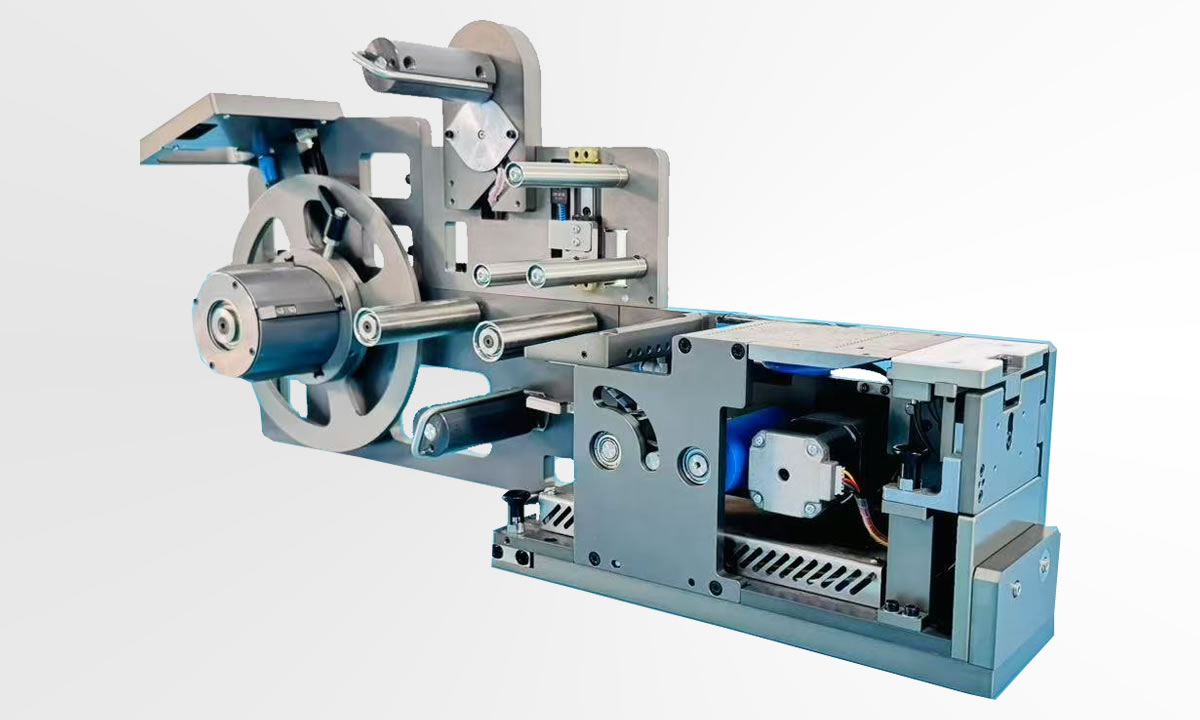

YIG-QT-S2C Front Push Long Model

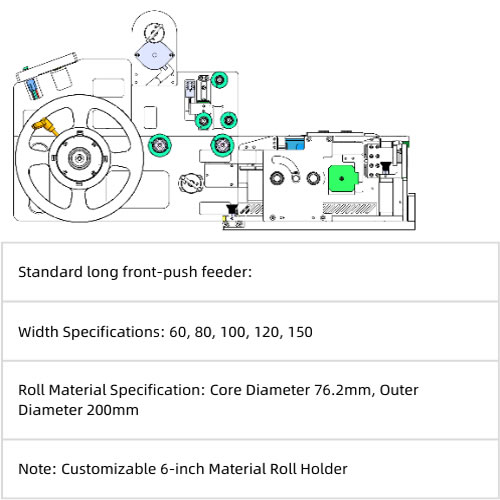

QT front push standard series selection

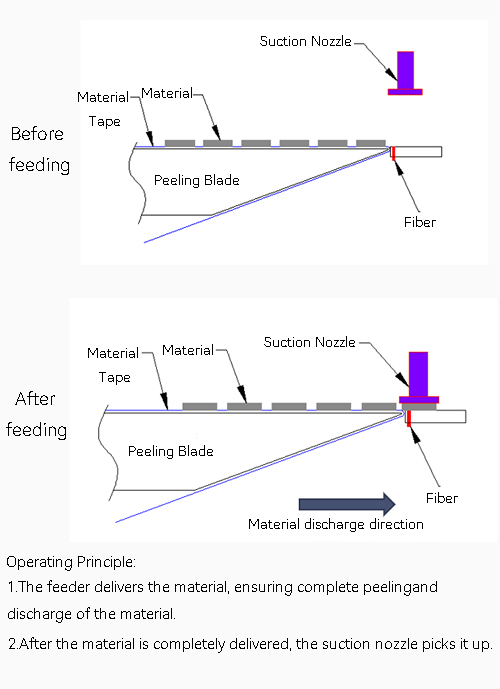

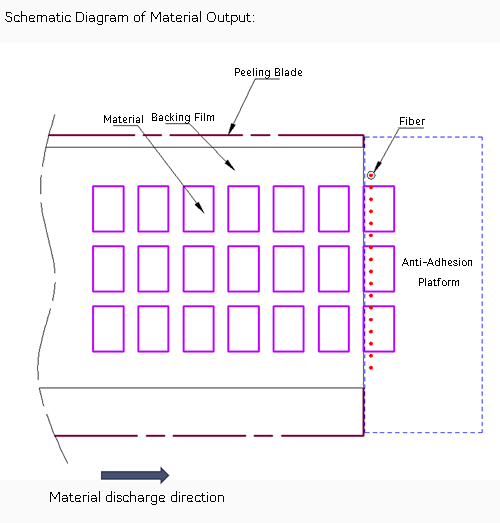

Operating Principle:
1.The feeder delivers the material, ensuring complete peeling and discharge of the material.
2.After the material is completely delivered, the suction nozzle picks it up.

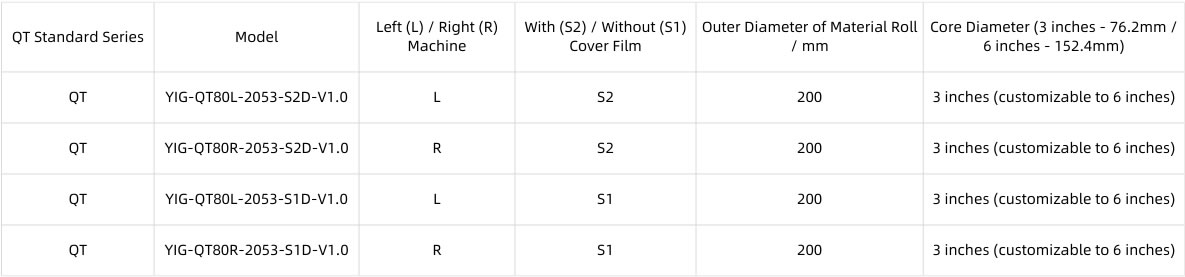

Please refer to the above figure for selection based on equipment requirements. For example, the QT80L (left machine) model, with a bottom film width of less than 80mm and a material-to-bottom film edge distance of greater than 5mm.
Application: The front-push roll feeder is suitable for automatically peeling and feeding roll materials such as paper labels, protective films, foams, double-sided tapes, conductive tapes, copper foils, steel sheets, and reinforcement plates.
Advantages: High efficiency and short cycle time (CT).
Disadvantages: Has certain requirements for material characteristics.
Feeding speed: 60mm/s, Feeding accuracy: ±0.25mm (excluding errors caused by material characteristics).

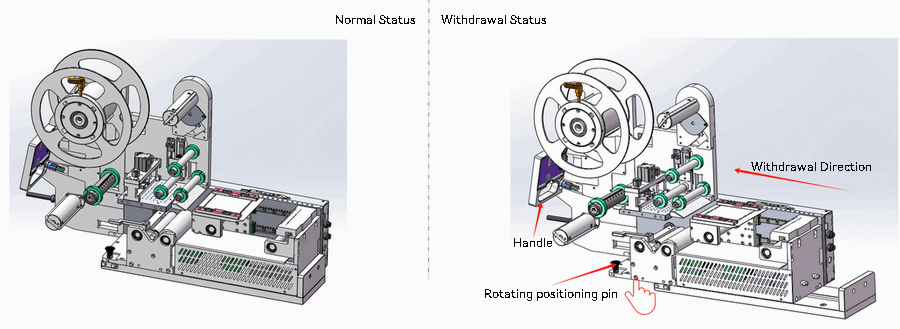

Feeder Extraction: Lift the rotary locating pin, hold the handle with your left hand, support the bottom of the feeder with your hand, and slowly pull out the feeder body in the direction indicated (as shown in the schematic diagram).
Note: Pull out slowly to prevent detachment!
Advantage: The feeder body can be quickly assembled and disassembled, providing convenience and efficiency.
