Roll Feeder

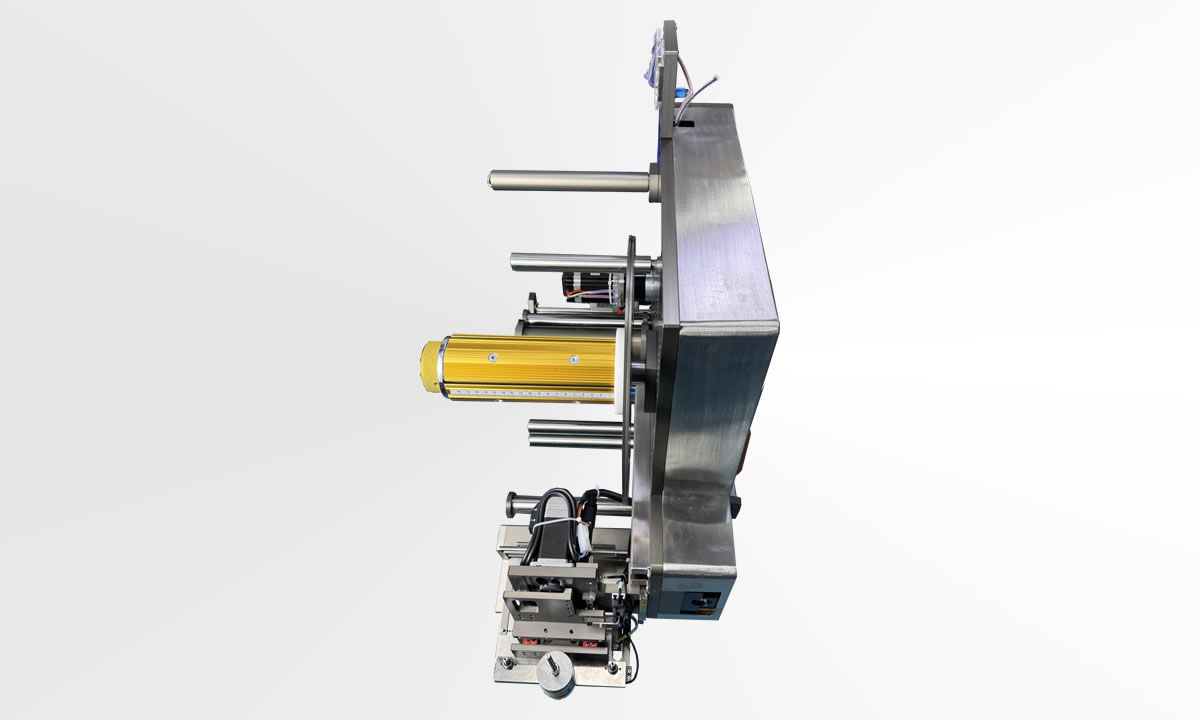

Retractable Roller Tape Customized Feeder

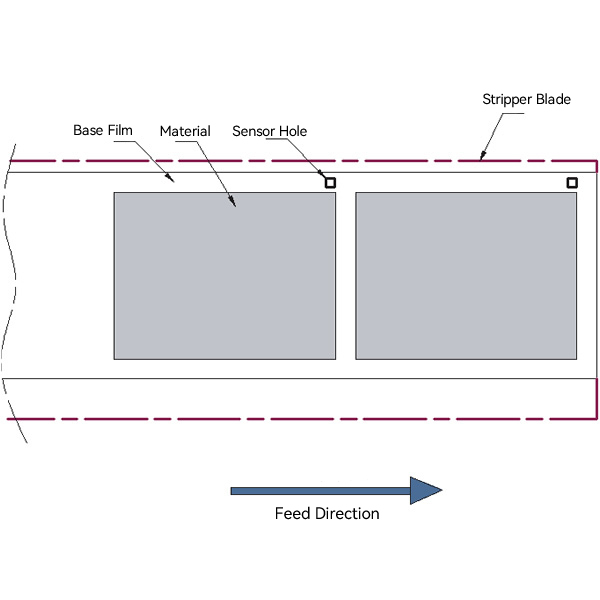

Suitable for automatic peeling and roller application of roll materials such as protective films.

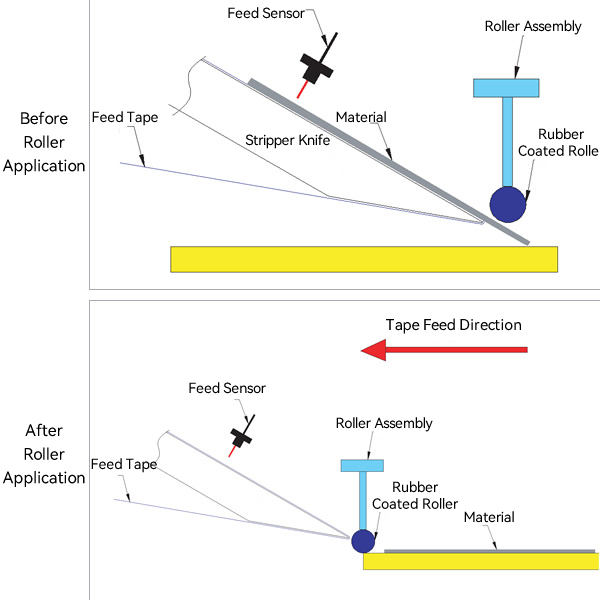

1.Feeder Dispensing;
2.Feed complete, product moves to attach position.
3.Feeder roller presses film head, peeling knife retracts for synchronous roll-on application.
4.After roll lamination is completed, the attached product is removed.
(Note: The roll lamination stroke is greater than the material length.)

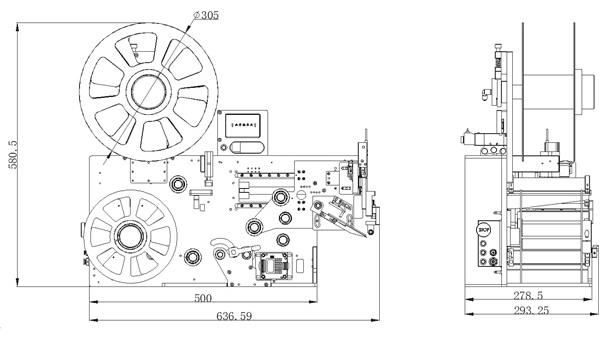

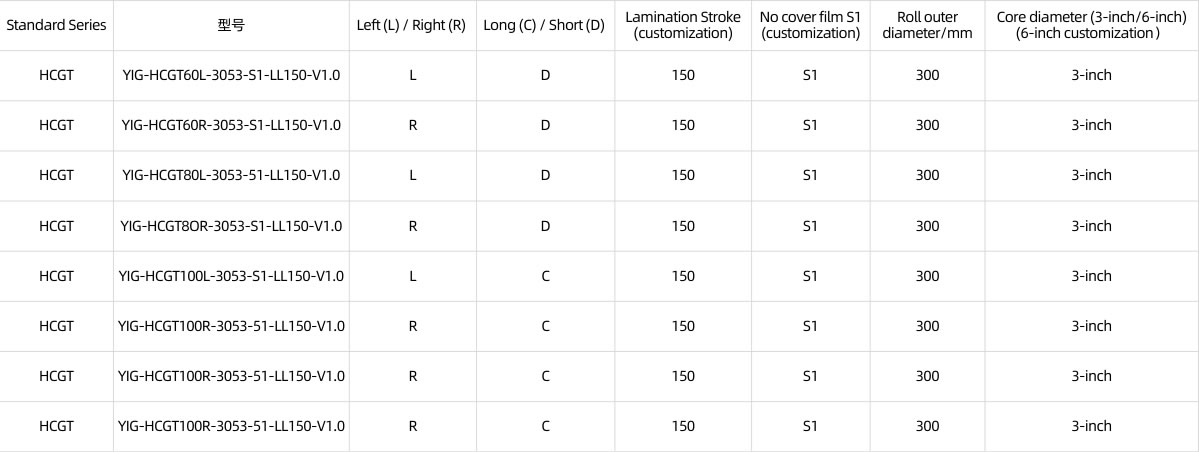

Refer to diagram for model selection based on equipment needs:
Applicable to: Retractable Roll Tape Feeders for Automated Peel-and-Apply of Protective Films and Other Roll Materials.
Advantages: High versatility and stable feeding.
Disadvantage: Long CT time.
Feed Speed: 60mm/s
Feed accuracy:±0.2mm(Excluding errors caused by material properties)

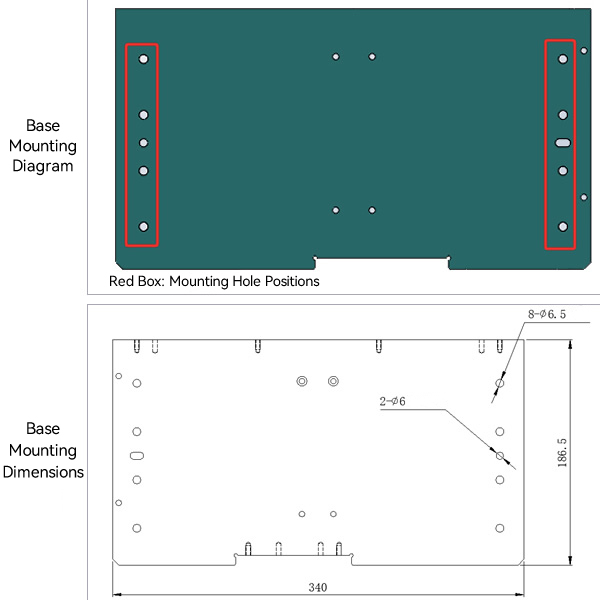

Base mounting dimensions customizable

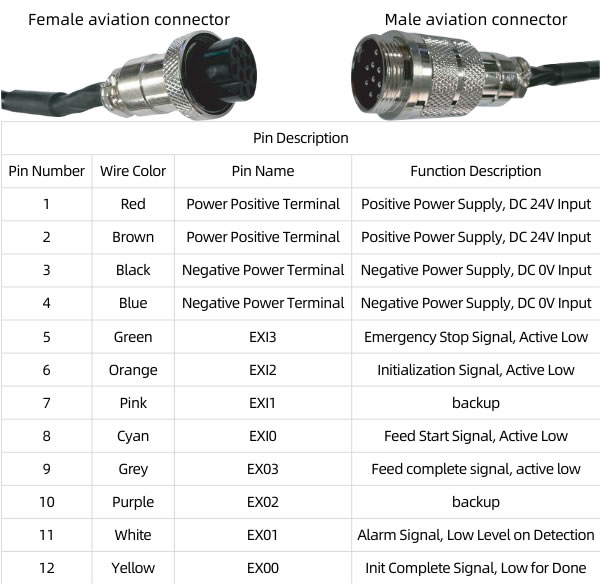

Standard Wiring Method
