Cutting Feeder

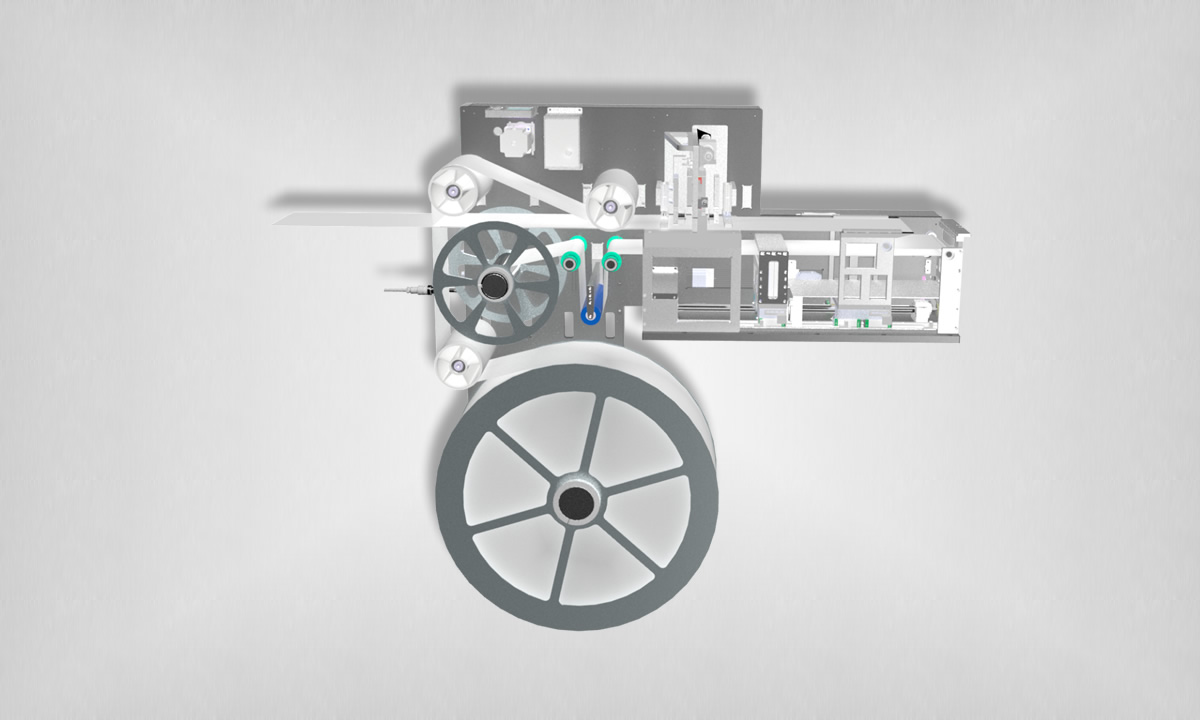

Cutting Roll Feeder
For automatic cutting and feeding of roll materials such as double-sided adhesive, conductive adhesive, and high-temperature adhesive.
Videos Product Document

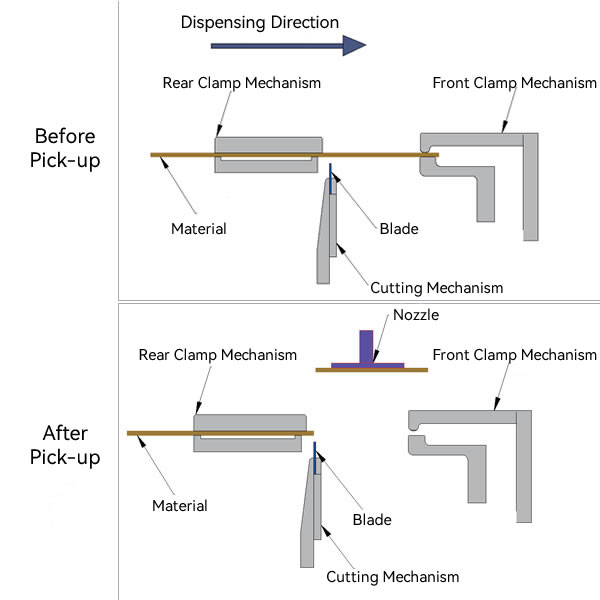

Working Principle:
1.As feeder dispenses, rear clamp grips material, feeding head into front clamp while front clamp releases.
2.Front clamp tightens, rear clamp releases, retracts to set position, then tightens material.
3.Suction nozzle grasps material for trimming.
4.Trimming mechanism cuts, front clamp releases after cut.
5.Suction nozzle retrieves material.
Select model based on diagram, e.g., CQ20L (left) for 20mm material width.
Advantages: High versatility, stable feeding
Feed Rate: 60mm/s
Feed Accuracy:±0.1mm(Excluding errors caused by material properties)

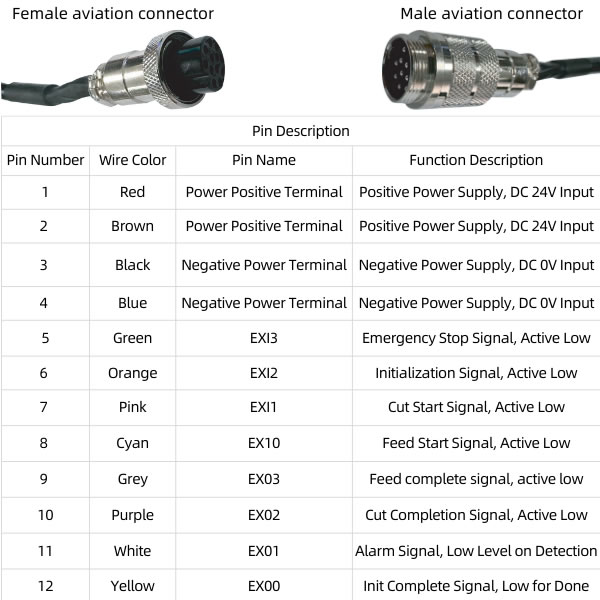

Standard Wiring Method

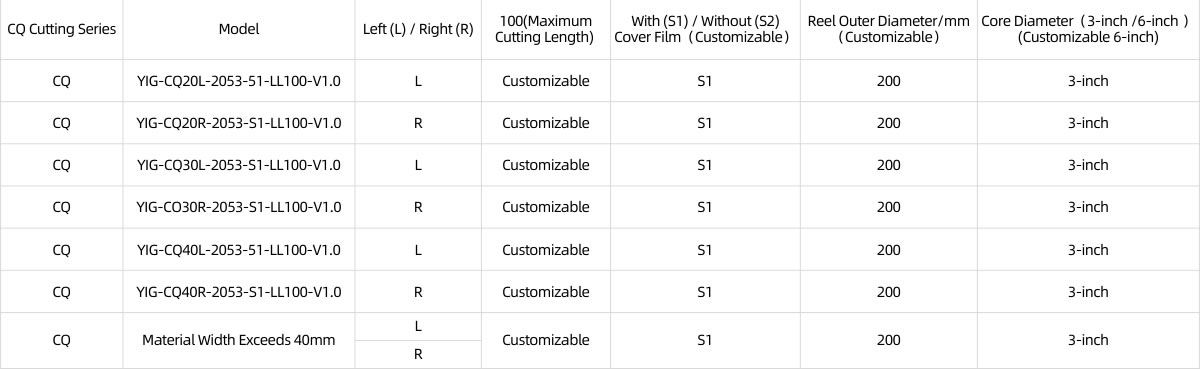

Selection Comparison Chart
